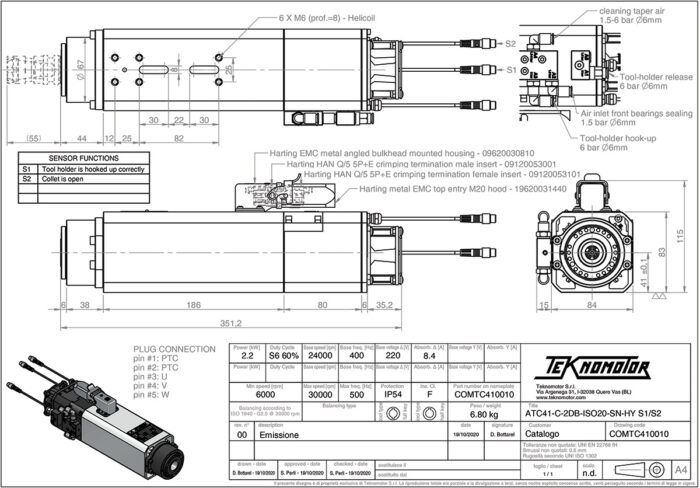

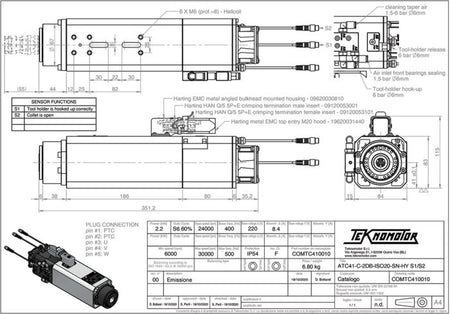

ATC41-C-2DB-ISO20-SN-HY S1/S2

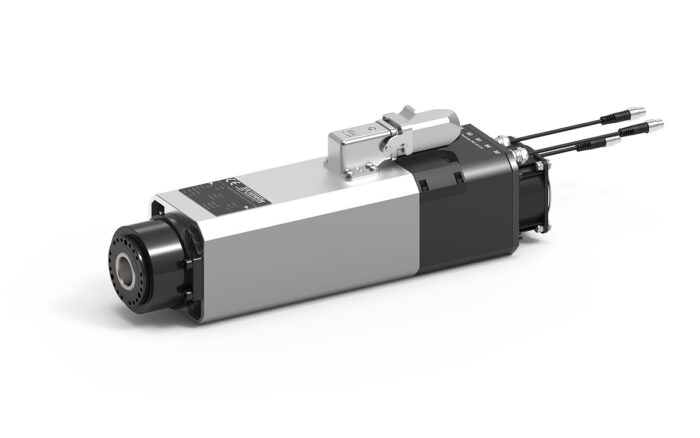

The electrospindles series ATC41 have been designed to develop high power with limited overall dimensions and low weight, only 5.9kg. This type of electrospindle is suitable to be installed on automatic machines, robotic application, cnc routers and desktop routers for machining wood, aluminum, plastics and composite materials. Thanks to the stiffness of the mechanical components, the speed of tool changing and the goodness of electrical components of this electrospindle, Teknomotor wanted to offer a best in class product for the most demanding customers. This version is equipped with ISO20.

Tool Holder

ISO20

Power

2.20 kW

Duty Cycle

S1

Torque

0.88 Nm

Normal speed

24000 RPM

Max speed

30000 RPM

Voltage

220 V

Weight

6.80 Kg

Order code

COMTC410010
